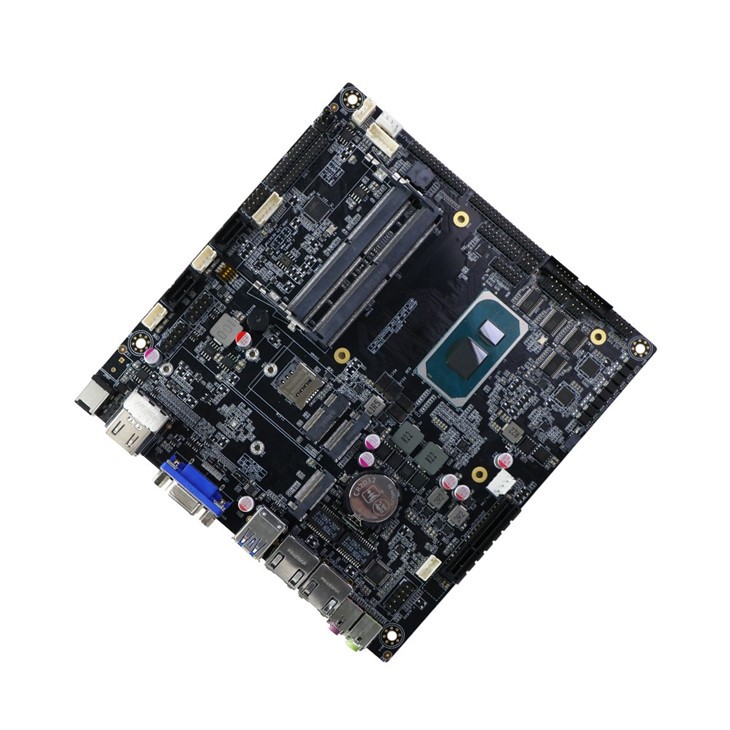

Irqiq Mini-itx Intel Tiger Lake Mainboard Hm -1115 D26

Karatteristiċi
• Tadotta proċessur tas-serje Intel ® Tiger Lake UP3
• Grafika Intel ® Iris ® XE
• 2 x ddr 4 3200 MHZ Memorja So-DIMM, Max 32GB
• VGA / DP, 2 * EDP, 2 * HDMI Support Four Screen Display
• 2 × USB3. 0, 8 × USB2. 0
• 6 × com, 1 × LPT, 1 × PS / 2
• 2 x RJ45 LAN (RTL8111H PCIE BUS CHIP CARD NETWORK)
1 x m.2 key-e, 1xm.2 key-b, 1 x m.2 m key, 2 x sata

Hm -1115 d 26- vhle

Modulu attiv tat-tkessiħ tal-fann, dissipazzjoni tas-sħana effiċjenti, prestazzjoni qawwija tas-sistema.
• Appoġġ Wake On LAN, Boot bla Diskless, Auto Power On
• Adattat għall-bejgħ bl-imnut, self-service, PC all-in-one, kontroll industrijali u eċċ.

32GB

2 X DDR 4 3200 MHZ Memorja So-DIMM, Max 32GB

6 com

6 × RS232, COM2 Appoġġ RS232 / RS485

Dc 12-19 v

Input pwr

10 USB

2 × USB3. 0, 8 × USB2. 0

Hm -1115 d 16- vh2e	i3-1115G4	1 × 1000m LAN	1 0 × USB (2 × USB3.0)	1 × HD +1 xvga +2 xedp
Hm -1115 d 26- vhle	i3-1115G4	2 × 1000m LAN	8 × USB (2 × USB3. 0)	1xHd +1 xvga +1 × lvds +1 × edp
Hm -1135 d 16- vh2e	i3-1115G4	1 × 1000m LAN	1 0 × USB (2 × USB3.0)	1 × HD +1 xvga +2 xedp
Hm -1135 d 26- vhle	i3-1115G4	2 × 1000m LAN	8 × USB (2 × USB3. 0)	1xHd +1 xvga +1 × lvds +1 × edp
