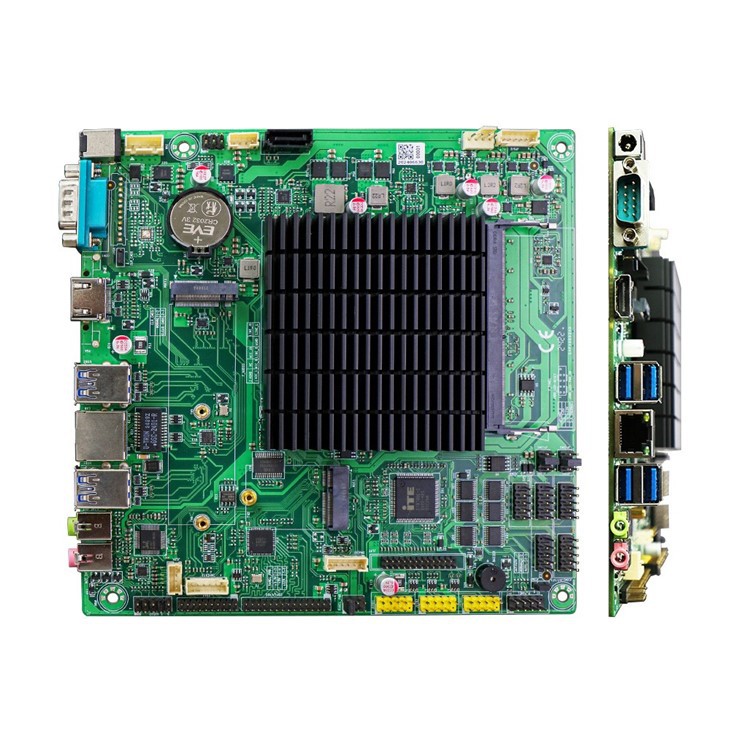

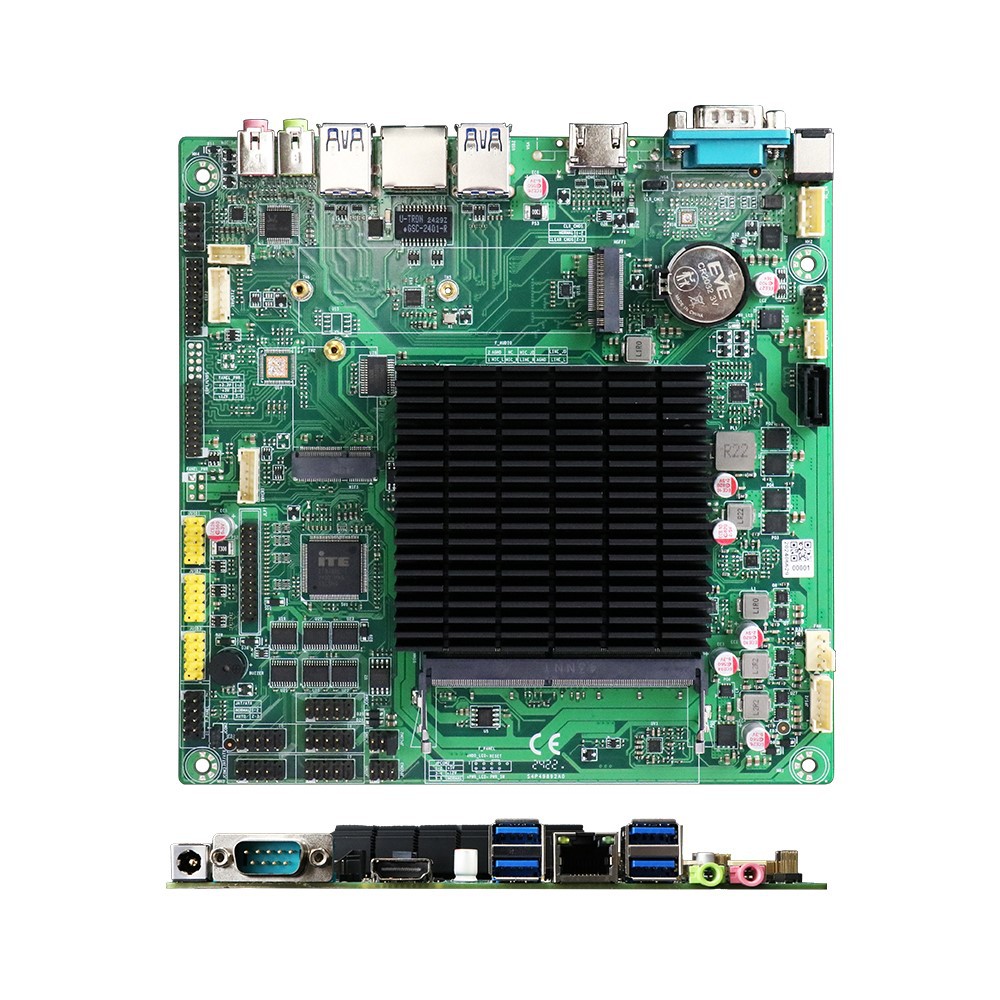

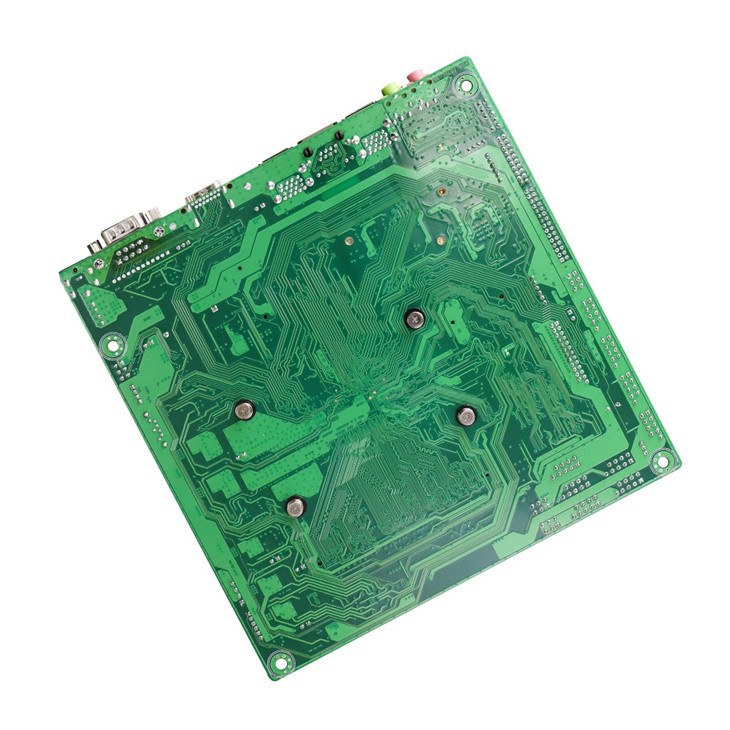

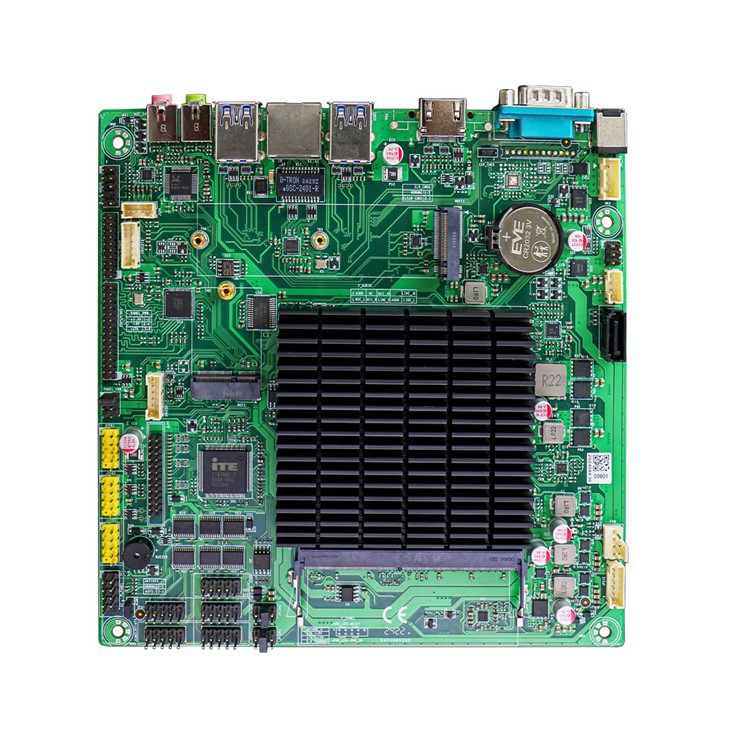

N5095 Mini Itx Motherboard HM-N5095D16
• tadotta proċessur tal-lag tal-lag intel®
• 1 × DDR 4 2933 MHZ SO-DIMM RAM, Max 16GB
• VGA, LVDS, HDM Appoġġ Triple Display
• 6 × com, 1 × lpt, 1 × ps / 2
• Tappoġġja l-għassa, tqum tan-netwerk u stivali bla disk.
• Adattat għall-bejgħ bl-imnut, self-service, magna kollha-waħda u industriji ta 'kontroll industrijali
Ibgħat l-inkjesta
Product Details ofN5095 Mini Itx Motherboard HM-N5095D16
◆ Adotta proċessur tal-lag ta 'l-intel® Jasper
◆ Grafika Intel® UHD
◆ 1 × DDR 4 2933 MHZ SO-DIMM RAM, Max 16GB
◆ 4 × USB3. 0, 6 × USB2. 0
◆ 6 × com, 1 × lpt, 1 × ps / 2
◆ 1 × RJ45 LAN (RTL8111H PCIE BUS CHIP CARD NETWORK), 1 × Mini-PCIE
◆ 1 × MSATA, 1 × SATA
◆ Appoġġ għal għassa, tqum tan-netwerk u but bla disk.
◆ Adattat għall-bejgħ bl-imnut, self-service, magna kollha-waħda u industriji ta 'kontroll industrijali
H-JSL01
| CPU | Abbord Intel Jasperlake {{0}} Core n 5095 2. 0 ~ 2.7GHz CPU 15W 4 Mb L3 Cache |
| Chipset | Intel Jasperlake Soc Integrat |
| Uri kontrollur | Intel CPU Integrat UHD Display Controller |
| Interface tal-wiri | Appoġġ Triple Display: VGA / HD + LVDS / EDP + EDP VGA Riżoluzzjoni Massima 1920x1200 @ 60Hz; HD Riżoluzzjoni Massima 4096x2160 @ 30Hz Riżoluzzjoni Massima EDP 1920 * 1080 @ 60Hz; LVDS Riżoluzzjoni Ottimali: 1920 * 1080 |
| Memorja | 1xddr4 slot tal-memorja tas-sodimm, sa 16GB |
| Ħażna | 1xsata3. 0, 1xm. 2 2242 / 2280 interface jappoġġja SSD bi protokoll SATA / NVME |
| Awdjo | IO ta 'wara jappoġġja mic-in, line-out, jappoġġja l-awdjo tal-pannell ta' quddiem tax-chassis, jappoġġja l-kanal doppju 2W / 8ω, 3W / 4ω output tal-qawwa |
| Netwerk | 1XRJ45 Gigabit Ethernet Port RTL8111h |
| USB | IO ta 'wara: 4 X USB3. 0 (double-sayer USB 3. 0 tip-a) Abbord: 3 x 2 * 5n9pin header, espansjoni 6 * USB2. 0 |
| Port parallel / i²c / | Smbus 1 lpt port parallel |
| Port tas-serje | 6 portijiet tas-serje RS232 COM2 & COM3 Support Pin 9 5 / 12v Power Supply |
| Xarabank ta 'espansjoni | 1 M.2 Key-M (Adaptive SATA / PCIE X2) 1 m.2 key-e (pcie x 1+ usb2. 0 sinjal) |
| Portijiet oħra | 1 ps / 2 1 * 6pin wejfer, 1 jcash cash box interface (bil-bord tal-kaxxa tal-flus kontanti) |
| Temperatura u umdità | Temperatura tal-Ħażna u Umdità: -20 ~ 75 grad 10% ~ 90%, Non-Condensing Temperatura u Umdità tax-Xogħol: 0 ~ 60 grad 10% ~ 90%, Non-Condensing |
| Sistema operattiva | Windows 7/8/10, Server 2008/2012, Linux |
| BIOS | Ami uefi bios |
| Funzjonijiet speċjali | Appoġġ Watchdog, Boot bla Diskless, Tqum tan-Netwerk, Power On, Boot Timed |
| Provvista ta 'enerġija | DC 12V |
| Daqs tal-PCB | 170mm * 170mm (l * w) |
| Mudell | CPU | LVDs | EDP | HD | VGA | LAN | USB | Com | M.2 | Mini-pcie | |
| 3.0 | 2.0 | ||||||||||
| HM-N5095D 12- H2E | N5095 |
/
|
2
|
1 | / | 1 | 4 | 6 | 2 | 2 | / |
| Hm-n5095d 12- hle | N5095 |
|
1
|
/ | 1 | 4 | 6 | 2 | 2 | / | |
| HM-N5095D 12- V2E | N5095 |
/
|
2 | / | 1 | 1 | 4 | 6 | 2 | 2 | / |
| Hm-n5095d 12- vle | N5095 | 1 | 1 | / | 1 | 1 | 4 | 6 | 2 | 2 | / |
| HM-N5095D 16- H2E | N5095 |
/
|
2 | 1 | / | 1 | 4 | 6 | 6 | 2 | / |
| Hm-n5095d 16- hle | N5095 | 1 | 1 | 1 | / | 1 | 4 | 6 | 6 | 2 | / |
| HM-N5095D 16- V2E | N5095 |
/
|
2 | / | 1 | 1 | 4 | 6 | 6 | 2 | / |
| Hm-n5095d 16- vle |
N5095
|
1 | 1 | / | 1 | 1 | 4 | 6 | 6 | 2 | / |
